The L-Board: T-Board Reimagined

État : Proposition
2924
14
avis
24 octobre 2015 , Dernière actualisation : 5 février 2017
Publié
dans Elektor | May 2017 | Cliquez ici

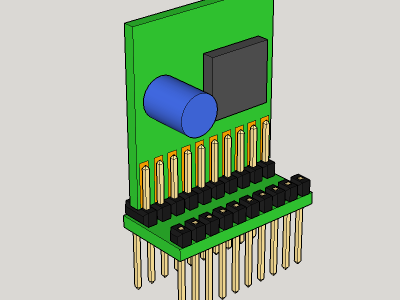

I am a great admirer of the Elektor T-Boards, but the compromise these require has always bothered me. The long bar of the ‘T’ has to be kept as narrow as possible making for a difficult board layout. It inevitably ends up substantially wider than the 10mm ideal occluding a large proportion of the breadboard contact points. In this article, I describe a new carrier board concept which avoids this compromise.
Tout lire
