MIDI I/O Break-out Board [190070]

État : Proposition
70
1
avis
23 janvier 2019
MIDI I/O Break-out Board
Little module that can be configured as a MIDI input or output and with 5-way DIN connector or Tip-Ring-Sleeve (TRS) 3.5mm or 2.5 mm jack. Suitable for use in 5V or 3V3 systems.

MIDI BoB configurations
DIN TRS35 TRS25
input 3V3/5V input 3V3/5V input 3V3/5V
output 3V3 output 3V3 output 3V3
output 5V output 5V output 5V


Tout lire
Afficher moins
Images

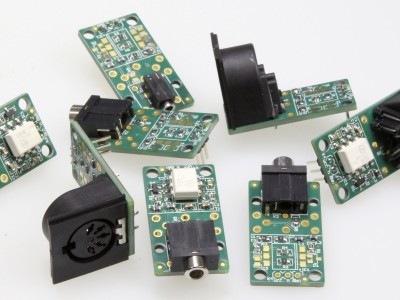

Collection of input and output BoBs with three types of connectors.
