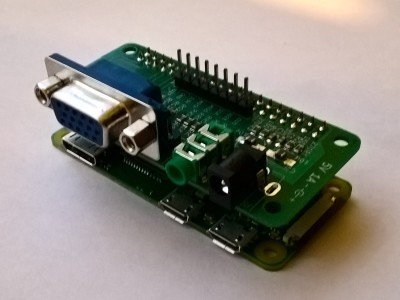

VGA & audio interface for Raspberry Pi Zéro
VGA & audio interface for Raspberry Pi Zéro & 2,3,B+

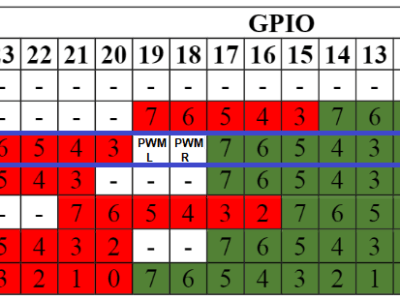

Like VGA666, it use dpi interface (in mode 3 to free gpio 18 & 19)
audio interface is connect to GPIO 18 & 19 (PWM)
Copy vga565.dtbo in /boot/overlays/ and copy content of config-example.txt in /boot/config.txt
audio interface is connect to GPIO 18 & 19 (PWM)
Copy vga565.dtbo in /boot/overlays/ and copy content of config-example.txt in /boot/config.txt
