A Universal RLC-Box

État : Proposition
13 mars 2019 , Dernière actualisation : 13 mars 2019
When developing electronic circuits (or repairing devices) you often have to determine experimentally the value of a resistor, capacitor or inductor. Sometimes you even have to insert a little highpass or lowpass-filter and determine the best cutoff-frequency.
So instead of testing this with dozens of components or combinations of combinations on a breadboard take a look at this versatiel RLC-Box.

With the rotary switches you can quickly select a resistor (1 Ohm...100 Megohms), a capacitor (10pF...1.000µF) or an inductor (10nH...150mH).

Best is that with 2 additional triple-throw switches you can connect the 3 components in series or parallel combinations.

That way you can easily create a variable lowpass-, highpass-, bandpass-, bandstop-filter or a RLC tank-circuit (series or parallel).

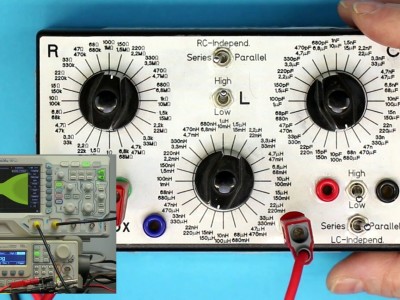

I created the prototype for my own demands many years ago. When I was using it on one of my YouTube-Videos there always were people asking if and where this box is available.

So I finally decided to polish it up a bit, create PCBs for the rotary switches and the faceplate and make this available as a Kickstarter project:

After the campaign ends I will publish the PCB-files under the Open Source Hardware license. But don´t expect that you can save a lot of money by building one of your own.
The cost for the major parts + PCBs + case add up to more than 100 Euros in volume.
In the mean-time I will publish here and on the kickstarter page some progress reports and background info.

If you have any suggestions or ideas for improvement, please comment

Tout lire
Afficher moins

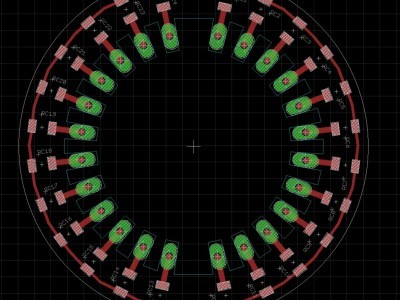

PCb for the rotary switches "R"

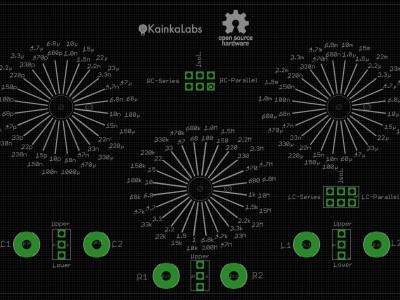

Preliminary Layout of the Faceplate

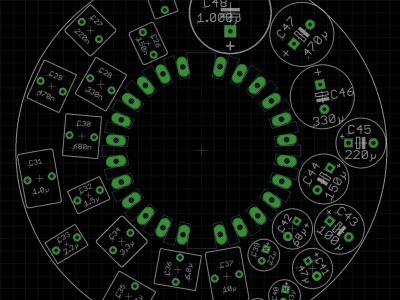

The PCB for the rotary-switches for the larger capacitor decades
