Full-Range Analog Input for ESP32

In its original release, the Espressif ESP32 has two 12-bit Successive Approximation Register (SAR) ADCs which can convert up to 18 analog inputs (the ESP32-Cx and -Sx versions have ADCs with other specs). The maximum value to convert is equal to the internal reference value Vref. For the ESP32, it is about 1 V, but it can vary between 950 and 1100 mV. It is also possible to use voltages higher than Vref by attenuating the input. The ESP32 has four possible attenuation options [1], as shown in Table 1.


 | Attenuation Factor  | Input Voltage Range
| ADC_ATTEN_DB_0  | 100 mV…950 mV
| ADC_ATTEN_DB_2_5  | 100 mV…1250 mV
| ADC_ATTEN_DB_6  | 150 mV…1750 mV
| ADC_ATTEN_DB_11  | 150 mV…2450 mV

 In my case, the default attenuation is 0 dB, with an input range of about 68 to 995 mV. For a better accuracy, it is recommended not to use attenuation (i.e., 0 dB) and to utilize the pins related to ADC1. I’ve used GPIO34.

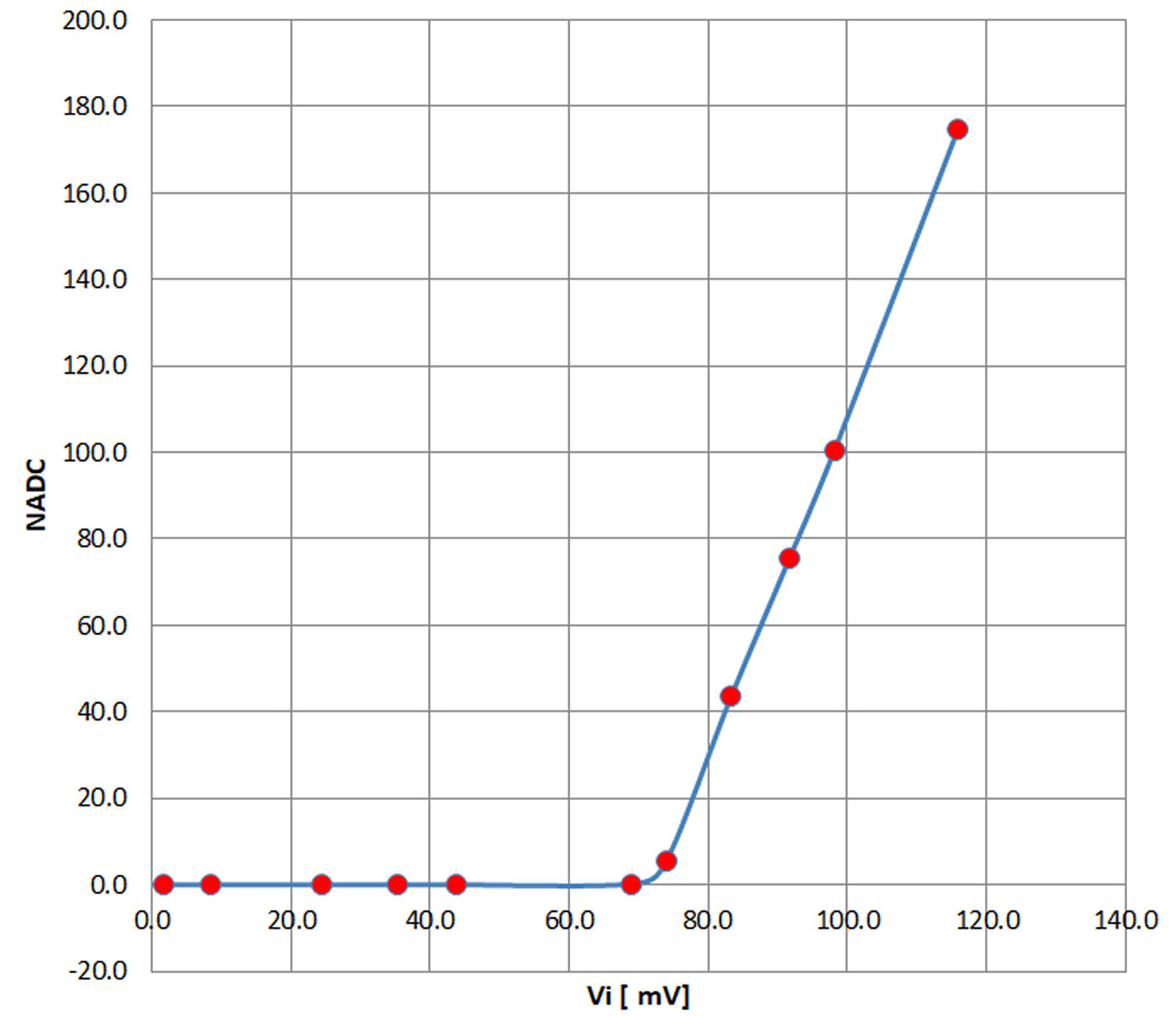

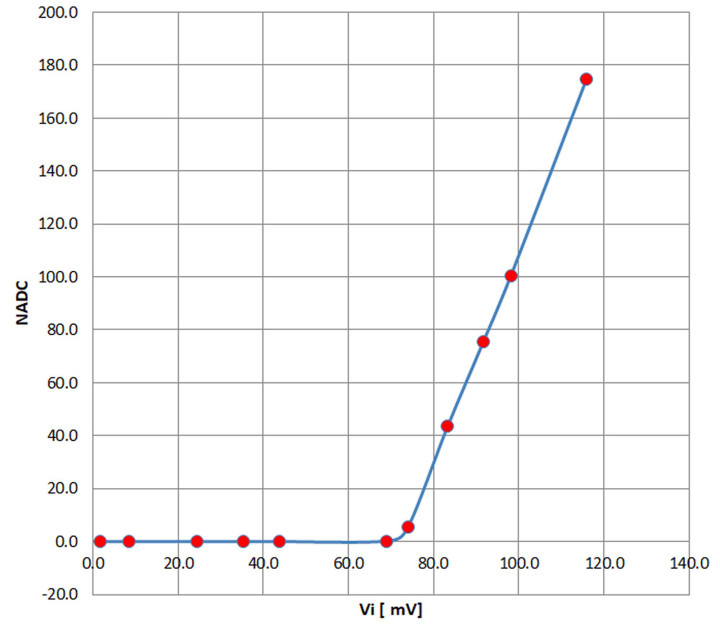

Figure 1 shows a fairly serious problem at low input levels: below 68 mV (in my case) the converter output returns zero, creating a dead-zone and strong non-linearity on the whole range.




Figure 1: This curve clearly shows the no-response zone between 0 mV and 68 mV, followed by a sharp ”knee”, impairing the overall linearity.

 The Aim of the Project

The goal of this design is to achieve an extended input range from 0 V up to a maximum of 3 V or even more, whilst maintaining a perfect linearity. A summing amplifier circuit can meet this objective: for a zero input, it sums a voltage corresponding to the minimum value detected by the ESP32 so that its output might go to zero when the input of the circuit is effectively zero. The proposed circuit also extends the range to a maximum value of about three volts, easily increased by using a single resistor in series.


The Summing Amplifier

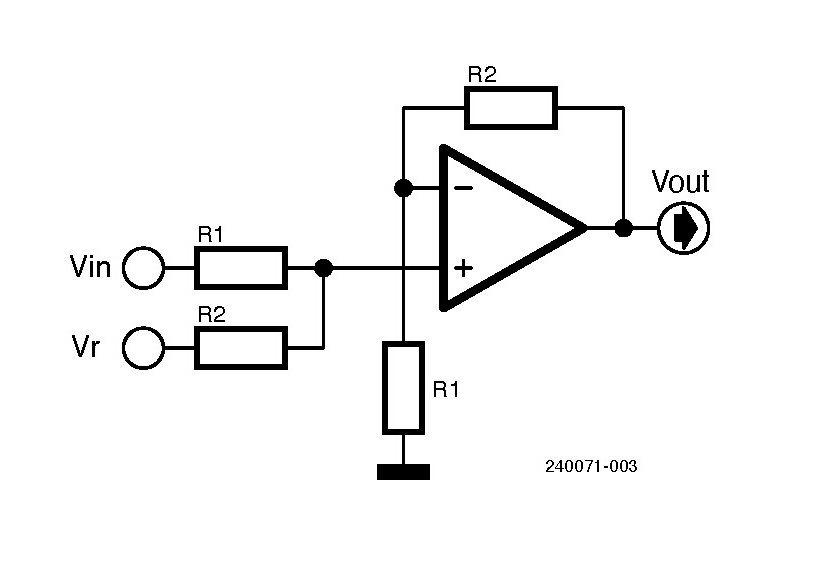

In Figure 2, we can see the single-supply, non-inverting summing amplifier, whose transfer function is as follows:


Vout = Vin · R2 / R1 + VR · R2 / R2






Figure 2: Single-supply summing amplifier.

Input Vin is the main input and must be reduced with a gain of less than one, so it must be R1 > R2 with a gain of about 1/3. We also want the reference input VR, which will be summed with the attenuated input signal, not to be amplified.

Setting R1 = 330 kΩ and R2 = 100 kΩ in the previous equation, we obtain:


Vout = Vin · R2 / R1 + VR = 0.303 · Vin + VR


If 68 mV is the value that brings the output to digital zero (other ESP32 may have slightly other values), we can choose VR = 68 mV. Then we have the following conditions:




These conditions fully meet our prerequisites (i.e., having a good response and linearity from the ESP32’s internal ADC — even at input voltages ranging between 0 mV to 3000 mV).

The Circuit

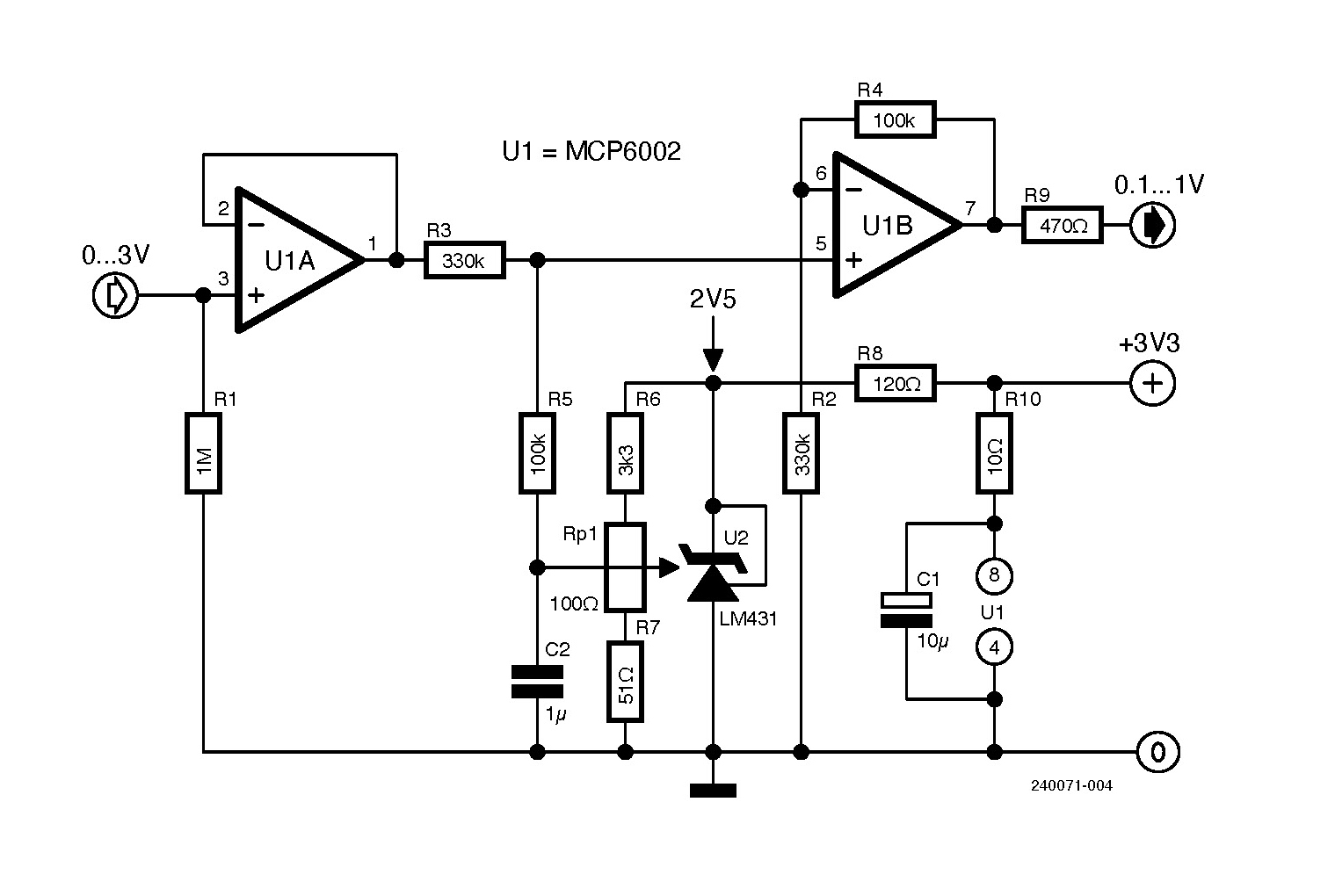

The complete interface circuit is shown in Figure 3.

Figure 3: The input interface circuit.

The operational amplifier U1A serves as a voltage follower, with very high input impedance and very low output impedance. The 1 MΩ resistor R1 avoids a floating input, and it is also very useful if we want to increase the input range. For example, putting a 10 MΩ resistor in series realizes a voltage divider of 1/11, extending the input range to 33 V.

The op-amp U1B is a summing amplifier (for more insights you might take a look at [2], page 4), and U2 provides a stable reference voltage. The VR voltage, present at the hot side of C2, is realized through a voltage divider and a trimmer, preferably a multi-turn type. This allows zero to be made at the output of the ADC. With the given values of voltage divider of the reference source U2, the VR voltage is configurable from about 37 mV to 116 mV. The capacitor C2 is recommended by the manufacturer of the 2.5 V voltage reference LM431, for a better suppression of the internally generated noise.


Rail-to-rail operational amplifiers, such as the one indicated, are particularly suitable for this application. I don’t recommend using operational amplifiers such as LM358; these, although indicated as suitable for single supply operation, do not work with input voltages below a few tens of millivolt.


Calibration

Now we need to perform a calibration. First we’ve to write a program that reads the values of an analog pin, in my case IO34, and prints them. We may use the Arduino IDE, the simplest choice, or MicroPython.


I used MicroPython because on my ESP32 development board I already had it loaded; if you want to choose this solution and learn this powerful language, you have to load it on ESP32 by following the instructions made available on various websites.


Then we place a jumper between the input and ground for Vin = 0, and start turning slowly Rp1 trimmer until we begin to see numbers other than zero.

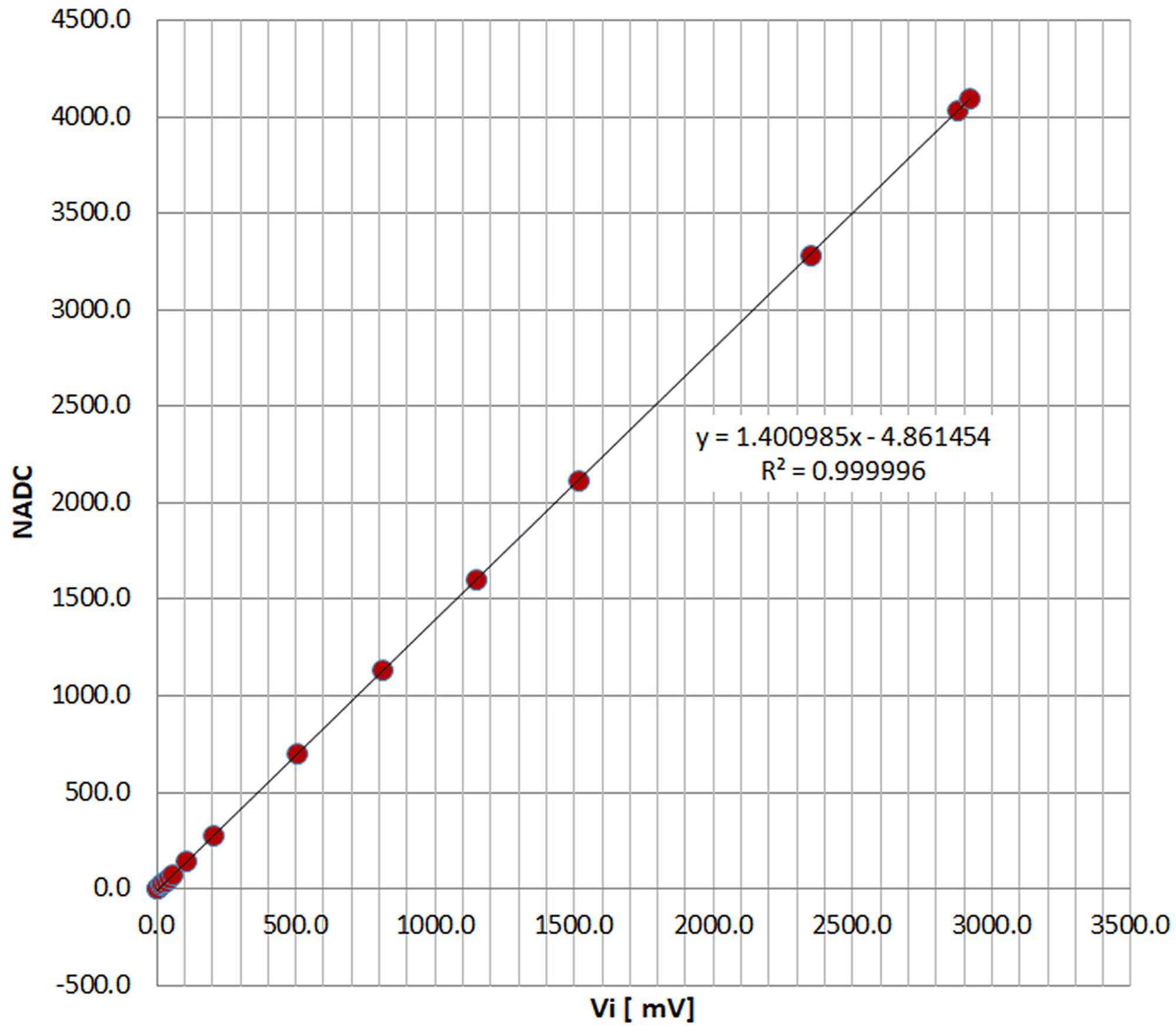

Connect the Vin input to a low-noise, stable voltage generator, checking the voltage with an accurate digital voltmeter, and take the various measurements and put them on an Excel-like spreadsheet to do a linear regression like the one shown in Figure 4.

Figure 4: The perfectly linear response of the ADC, after having implemented this interface at the analog input of the ESP32.

Seven to 10 measurements taken with a precision voltmeter are enough to obtain the coefficients with a linear regression, done with Excel or other programs. As can be seen, the results were excellent, with an R2 very close to one, in my case (R2 = R3 = 300 kΩ). The maximum input value that brought the output of the ADC to 4095 was 2923 mV.

To get the voltage in millivolts in our software, we need to invert the axes of the regression and insert the following expression in the code:


mV = NADC * 0.713780799 + 3.473077


Obviously, these values were applicable in my case, but might vary according to the components’ tolerances in your designs.


The Prototype

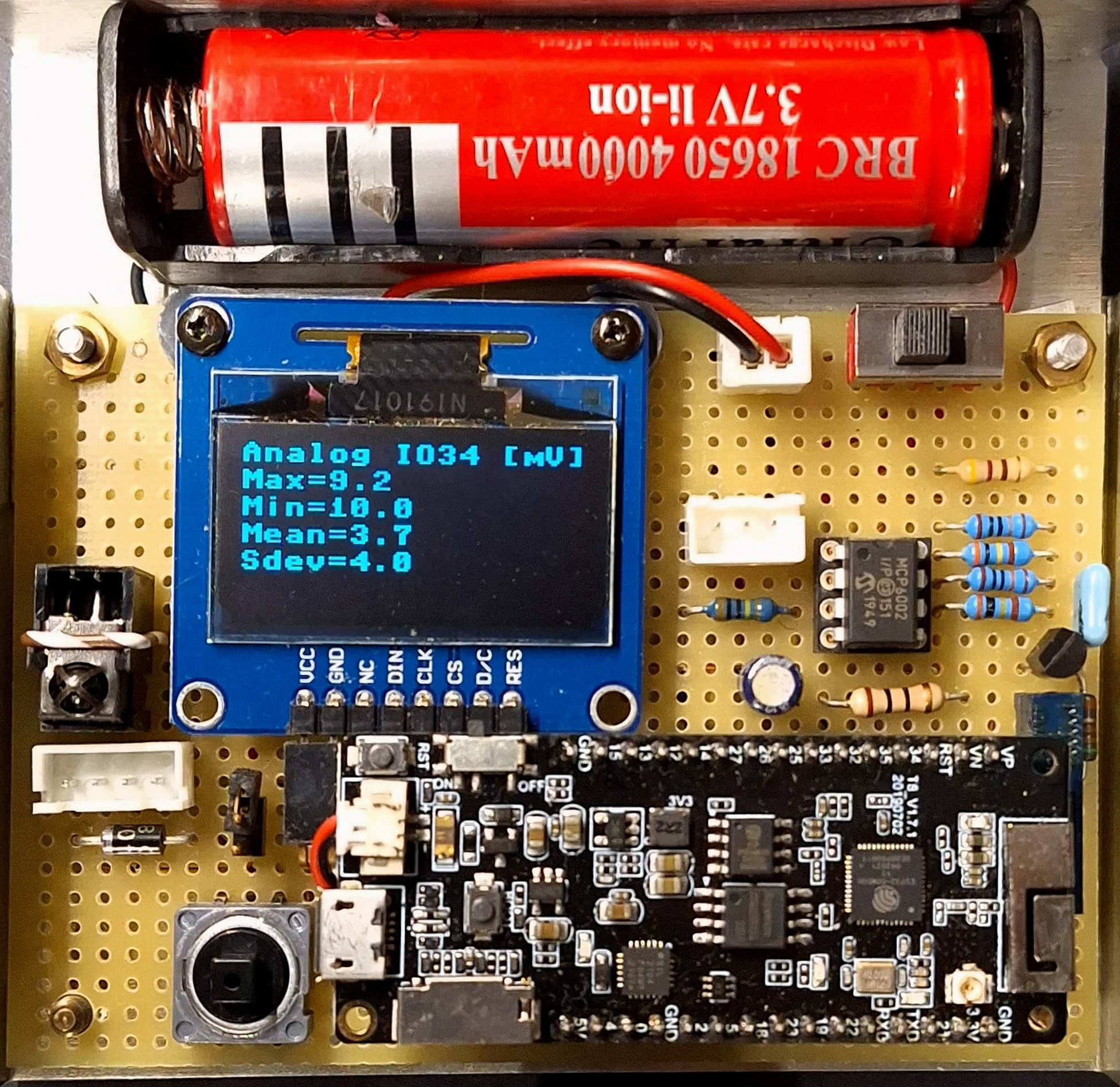

Figure 5 shows the circuit included in my development system that also has an OLED display and an IR receiver to decode TV remote controls. Only the input linearizer circuit, visible on the right of the photo, is described in this article, and the printout of the program listed are made using the USB serial instead of the OLED display, as pictured.



 Figure 5: The finished prototype at work. The display on the left is not making part of this project.

Program

The program below, written in MicroPython, acquires 100 samples of channel GPIO34 at a sampling rate of 500 Hz (period = 2 ms) and then prints the sampling statistics. I took the average value while also observing the standard deviation of the measurements, which must be minimal.


# Program TestADSer.py to test display and ADC

# Giovanni Carrera, 03/03/2022



from machine import Pin,ADC

from time import sleep,sleep_ms

import math



ch1 = ADC(Pin(34))  #   initializes the analog input

ndata = 100

arr = [0 for i in range(ndata)]

while True:

    vmean = 0

    vqmean = 0

    ch1 = 0

    vmin = 5000

    for x in range(0,ndata):

       arr[x] = int(ch1.read())

       if arr[x] > vmax :

            vmax = arr[x]

       if arr[x] < vmin :

            vmin = arr[x]

        vmean += arr[x]

        vqmean += arr[x]**2

        sleep_ms(2)

    vmean /= ndata # mean value

    vqmean /= ndata # mean of quadratic values

    k = vqmean - vmean**2

    if k >= 0 :

        StDev = math.sqrt(k)

    else :

        StDev = 0



    print('Analog ch = IO34')

    print('Max =' + str(vmax))

    print('Min=' + str(vmin))

    print('Mean=' + str('%.1f' %vmean))

    print('Sdev=' + str('%.1f' %StDev))

    print()

    sleep(1)

 The following instruction:



arr = [0 for i in range(ndata)]


is used to create the data buffer arr with size ndata.


In the acquisition loop, the sum vmean, the maximum vmax and the minimum vmin and also the sum of squares vqmean of the measurements are calculated. Next, the mean and standard deviation are calculated, which is equal to the square root of the mean of the squares minus the square of the mean. A check is also made on the sign of the radical k, which must be positive.


The sampling period, in milliseconds, is set by the following instruction:


sleep_ms(2)


Arduino Sketch

Those who wish to use the Arduino IDE can load into the ESP32 the sketch visible just below. To have the output precisely showing the voltage in millivolts, you must first do a calibration and adapt the values in your code (as described above for the Micropython software). The SW package for this design is available for download in the attachments section for this article.


/***************************************************************
 program ESP32acq.ino
 acquires ndata samples of analog channel pin 34
 and calculates the maximum, minimum, mean and standard deviation
 Giovanni Carrera, rev 04/12/2023
*****************************************************************/

uint32_t timep;
uint32_t deltat = 2;// period in ms
uint16_t value,NSamples;
uint16_t count= 0; // sample counter
#define ndata 100 // number of samples
#define ch1 34 // ESP32 GPIO34, ADC1_CH6
int16_t arr [ndata];// data buffer

void setup() {
  Serial.begin(115200);
  Serial.println(F("ESP32 ADC test"));
}

void loop() {
 int16_t bfi= 0;// data buffer index
 do {
   if(millis() - timep > deltat){
     timep = millis();
     arr[bfi] = analogRead(ch1);
     bfi++;
    }
 } while (bfi != ndata);
 int16_t vmin = 5000;
 int16_t vmax = 0;
 float vmean = 0;
 float vqmean = 0;
 float StDev;
 for (bfi=0; bfi < ndata; bfi++){
      ​if (arr[bfi] > vmax) vmax = arr[bfi];
      if (arr[bfi] < vmin) vmin = arr[bfi];
 ​​​​​​​ ​​​​​​​ ​​​​​​​ ​​​​​​​ ​​​​​​​ vmean += float(arr[bfi]);
 ​​​​​​​ ​​​​​​​ ​​​​​​​ ​​​​​​​ ​​​​​​​ vqmean += float(sq(arr[bfi]));
 }
 vmean /= ndata; // mean value
 vqmean /= ndata;// mean of quadratic values
 float k = vqmean - sq(vmean);
 if (k >= 0) StDev = sqrt(k);
 else StDev = 0;
 Serial.print(F("Max value = "));
 Serial.println(vmax);
 Serial.print(F("Min value = "));
 Serial.println(vmin);
 Serial.print(F("Mean value = "));
 Serial.println(vmean);
 Serial.print(F("St.Dev. value = "));
 Serial.println(StDev);
 delay(1000);
}



Weblinks:


[1] ESP32 ADC features: https://tinyurl.com/35k4ca5d


[2] B. Baker, ”AN682 Using Single Supply Operational Amplifiers in Embedded Systems,” Microchip Technology Inc. , 2000: https://tinyurl.com/mr2nz8pu


Component List


Resistors


R1 = 1 M, 1%, metal film


R2, R3 = 330 k, 1%, metal film


R4, R5 = 100 k, 1%, metal film


R6 = 3.3 k, 1%, metal film


R7 = 51 Ω, 1%, metal film


R8 = 120 Ω, 5%


R9 = 470 Ω, 5%


R10 = 10 Ω, 5%


Rp1 = 100 Ω, multi-turn trimmer



Capacitors


C1 = 10 µF, 35 V, Aluminum electrolytic


C2 = 1 µF, 25 V, ceramic AVX



Semiconductors


U1 = MCP6002, dual rail-to-rail op amp


U2 = TL431, shunt voltage reference
